Drying & Storage Cabinets

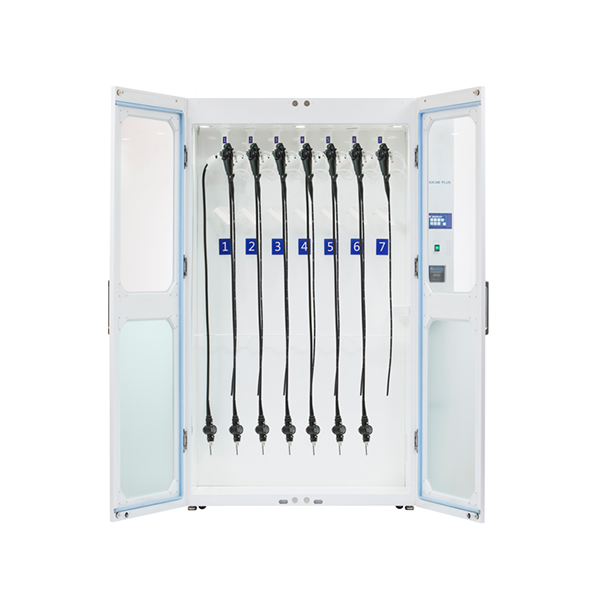

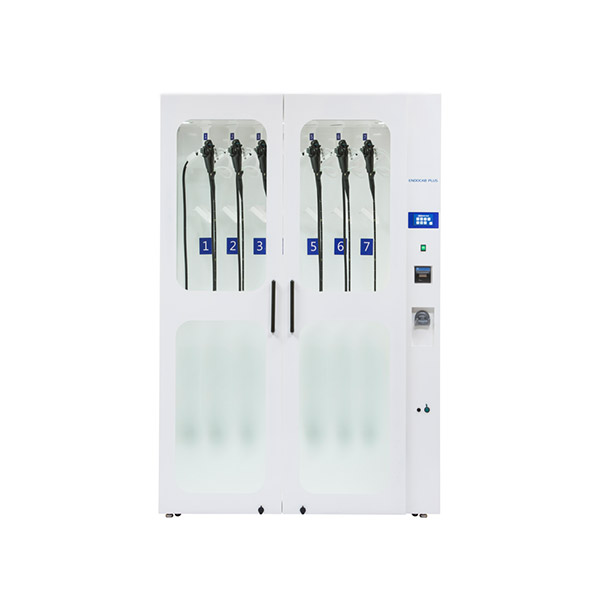

Endoscope Storage Cabinet: ENDOCAB PLUS
Features
- – Security, Monitoring and Traceability
- – Maintaining disinfection level for 72hrs at minimum
- – Prevents recontamination and bacterial growth
- – Data management system with barcode scanner
- – HEPA filter for protection of air quality
- – Individual channel air distribution
With HEPA filter and UV-C treated air
- – Air circulation system with temperature controller

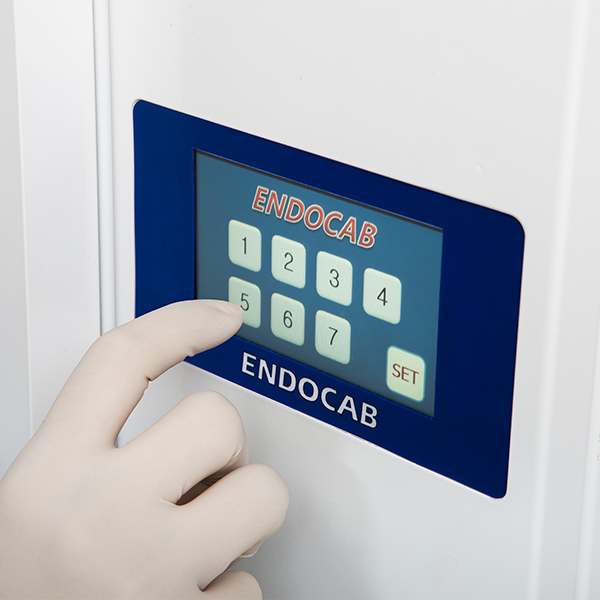

- – 4.3” color TFT LCD with touch screen display
- – Various configuration by user friendly software
- – Safety key lock for control touch panel
- – Validation process with printer
Specification
| Endoscope storage cabinet |
| Scope Capacity |
7 scopes |
| Scope arrangement |

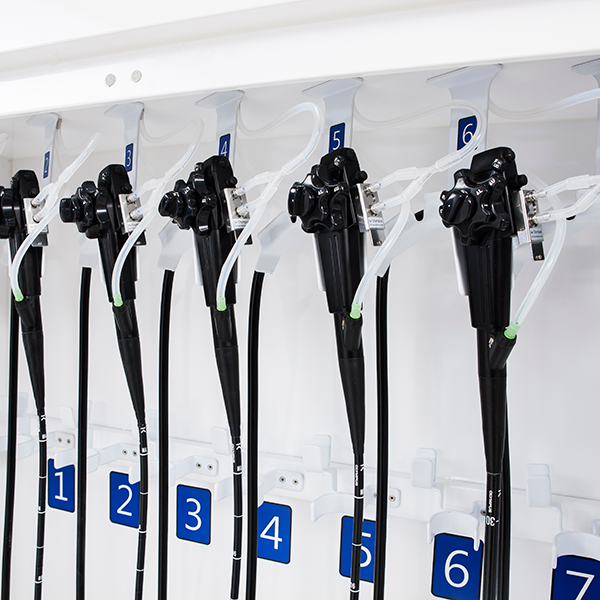

Vertical hanger with 7 holders |
| Setting time |
Storage time : 72hrs minimum |
| Drying time : 1 min ~ Continuous |
| Air quality |
UV-C treated air with medical grade HEPA filter |
| Power AC |
AC 220-230VAC, 50/60Hz |
| Internal lighting |
High brightness LED lamp (AUTO / MANUAL) |
| Temperature |
Controlled up to 40℃ |
| Channel connection |
3 port with connection accessories per scope |
| Air drying |
External surface : Air flow volume : 100cfm |
| Internal surface : Individual channel air drying |
| Safety function |
Door safety key lock |
| Control panel key lock |
| Dimension |
1370 x 550 x 2100mm(WxDxH) |
| Weight |
240kg |
